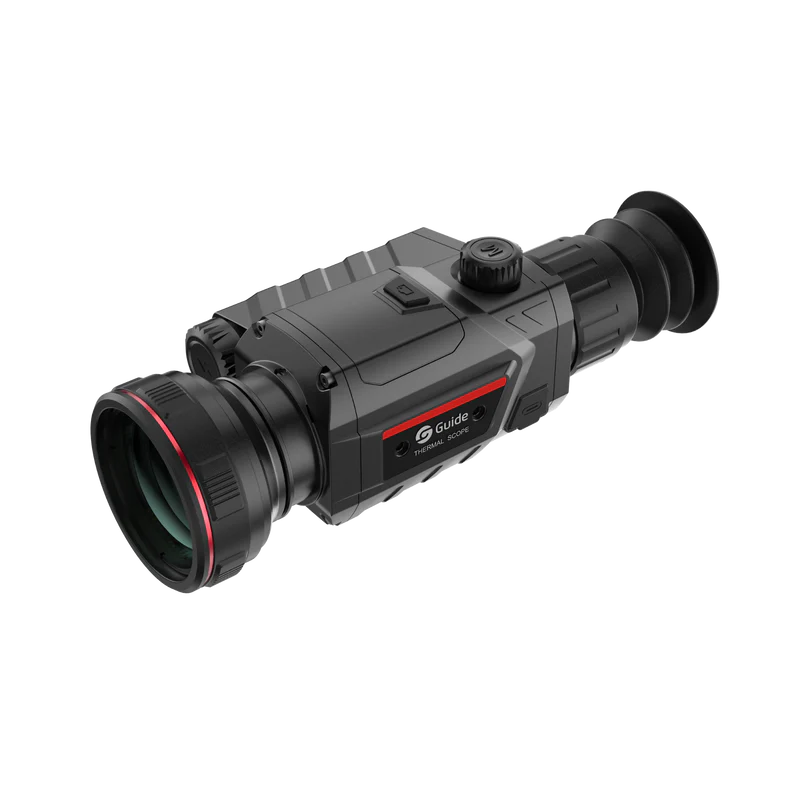

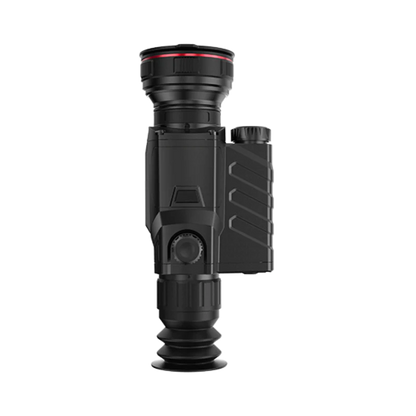

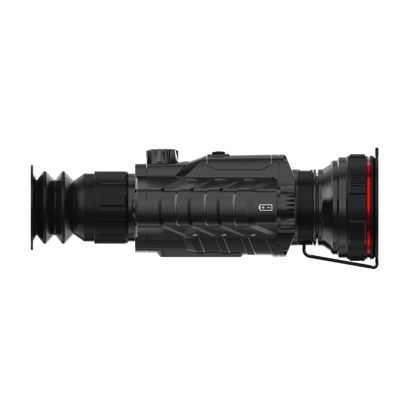

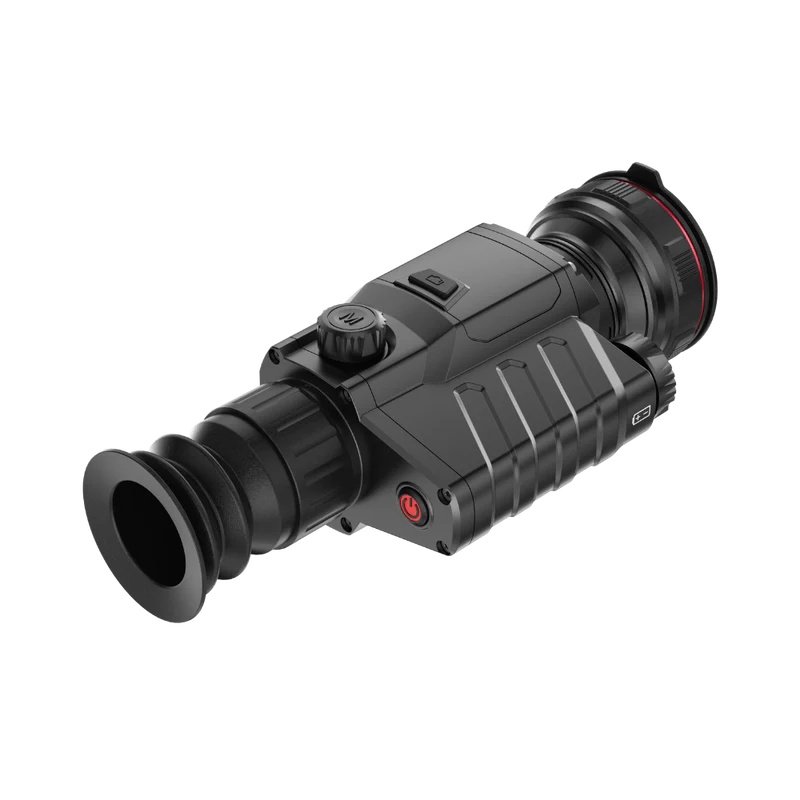

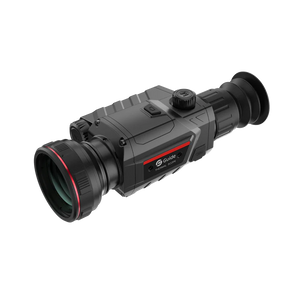

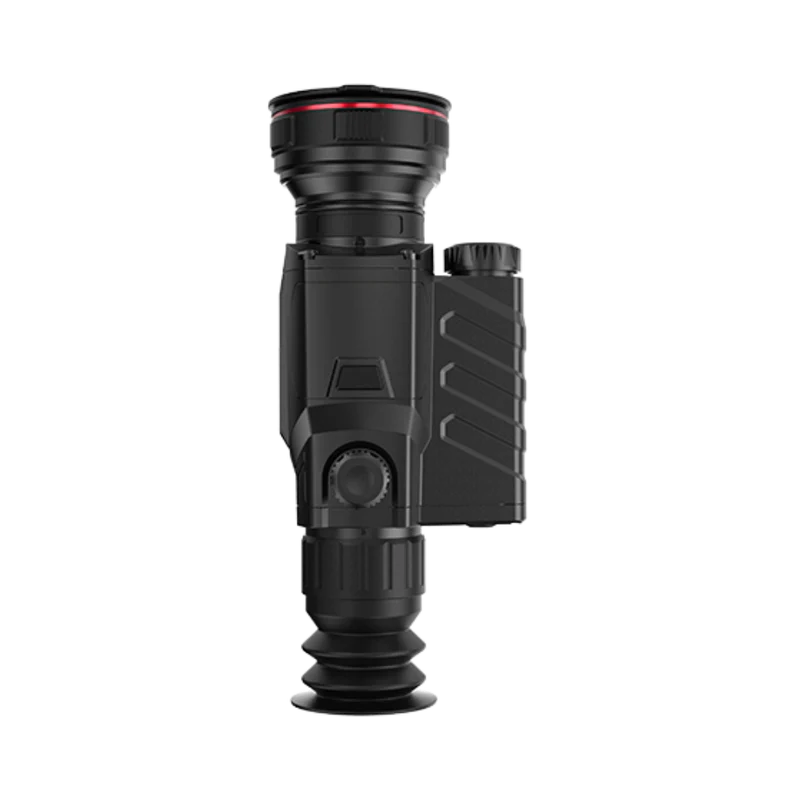

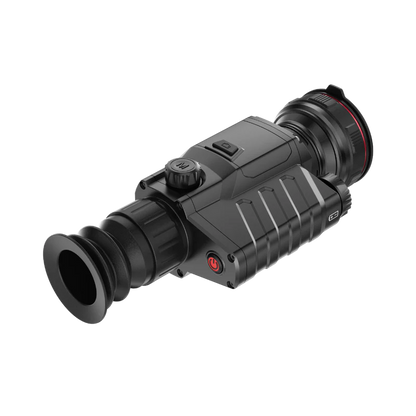

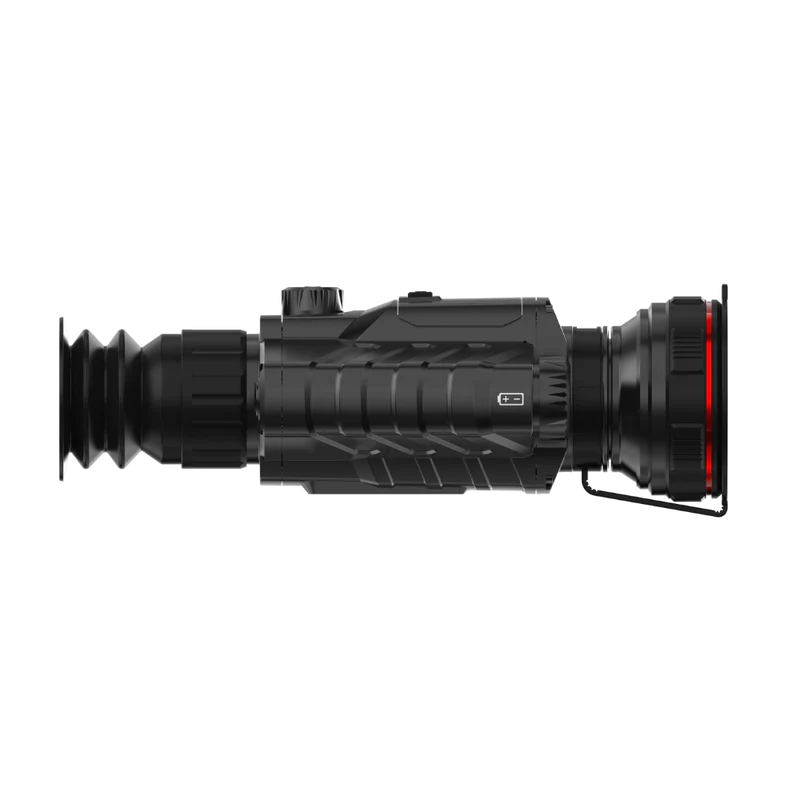

TR650-A Thermal Rifescope

$2,799.00
$2,799.00 $3,290.00
Shipping calculated at checkout.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed
Up to 15% off

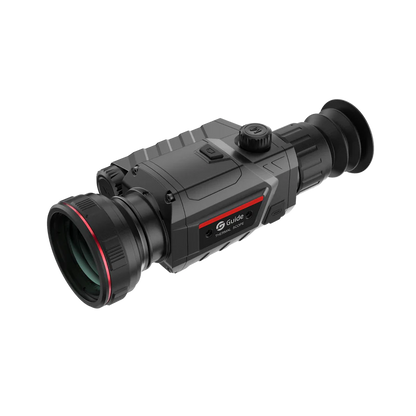

The TR Series is a compact thermal imaging riflescope imagined with intuitive ergonomics, high shock resistance and a rugged and durable body.

The TR 650 A is equipped with a 50mm germanium lens and a 640x512 resolution thermal sensor with a 20mK NETD, it has a detection range of 2800 yards, and a base magnification of 3X.

  • 640×512 12 μm Sensor Resolution
  • 2800 yd Detection Range
  • 3x Base Magnification
  • 50mm; F1.0 Focal length
  • 1024x768 Display Resolution
  • Ballistic Calculator, when paired with S600 LRF

The Stats:



Sensor
Type Uncooled VOx Infrared Detector, 8 to 14μm
Resolution 640×512@12μm
NETD 20mK
Frame rate 50 Hz



Lens
Objective lens 50mm, F1.0
Field of view 8.8°×7.0°
FOV m@100m 15×12
Magnification 3x~23.2x
Detection range 2600m/2800yd



Display
Display type 0.39'' AMOLED 1024×768
Color palettes White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
Eyepiece Eye relief: 48 mm; Diopter ± 4; Zoom: 14x



Hardware
WIFI 2.4G
Interface USB Type-C
Others Microphone, Bluetooth



System
Recording function Photo/Video (Audio recording included)
Memory capacity 32GB



Power
Battery type Single, replaceable 18650 battery
Operating time 8 hours



Environmental
Operating temp. -30°C to 50°C / -22°F to +122°F
Recoil Rating .300 Win Mag
Encapsulation IP67



Physical
Weight (g/oz) 682/24.06
Size (mm/in) 219×92×70/8.62×3.62×2.76

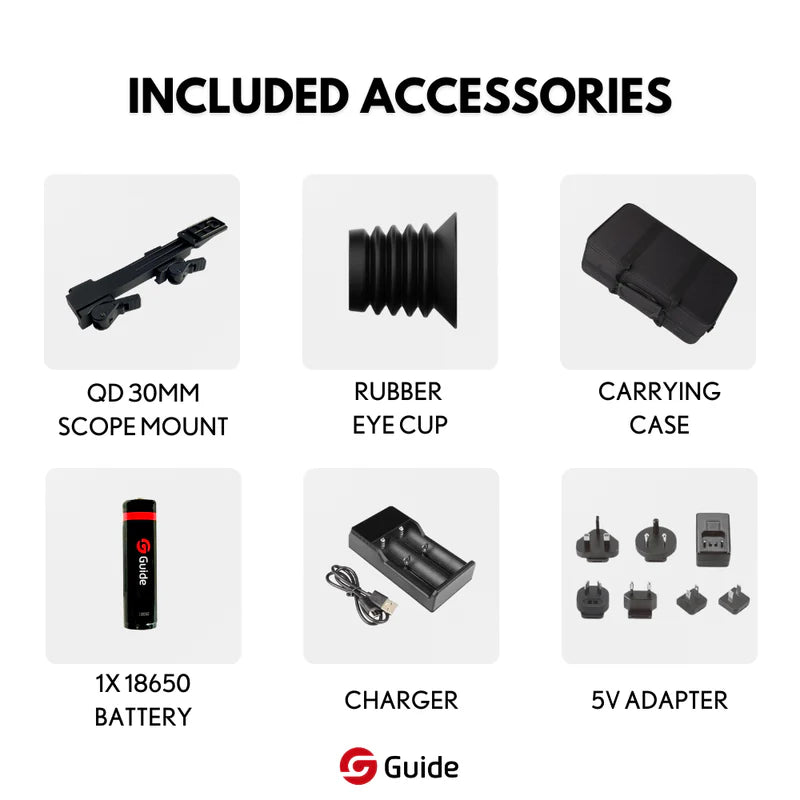

Standard Device, Quick-release scope mount, Type-C cable, 5V2A adapter (US, Britain, Australia and Europe), 18650 battery, Battery charger, Lens cover, Eye mask, Quick start guide, Warranty card
Optional 18650 battery, Dovetail guide, Bluetooth remote control, Laser rangefinder





TR650-A Thermal Rifescope

$2,799.00

Ten Year Warranty

At Guide Sensmart USA, we are proud and thrilled to offer the best warranty on the thermal optics market,

Our repair center is based in Dallas, Texas to ensure a fast and hassle-free experience for our customers with a 7-day turnaround for your product!

Ballistic Calculation

Connect the device to TargetIR Ballistics APP (Android or iOS) to set bullet and weather parameters, then transmit the data to the device for ballistic calculation, and achieve high-precision shooting easily.

Enhansed Thermal Sensor

The updated TR Series uses high-quality 12µm thermal imaging detectors with 640×512 thermal resolution and 20mK NETD to offer an exceptionally sharp image and excellent thermal sensitivity in all weather conditions.

Does it come with a warranty?

Guide Sensmart is pleased to offer an industry-leading warranty on all thermal sensors. Our core components, including detectors and sensors, are backed by a 10-year warranty, ensuring your product will remain a reliable companion for years to come.

We also offer:

  • A 5-year warranty on all other components.
  • A 2-year warranty on accessories such as batteries, chargers, and cables.

What happens if I don't like it?

Add your collapsible row content here. If it's set to open one row at a time, consider keeping the content in each row about the same length.

How fast is shipping?

All in stock items ship out within 1 to 2 business days,

Standard delivery (3 to 4 business days) is free on all orders over $99.

What's the return policy?

Should you find yourself less than completely satisfied with a purchase, you have the option to return most items within 30 days of receiving them for an exchange, store credit, or full refund.
